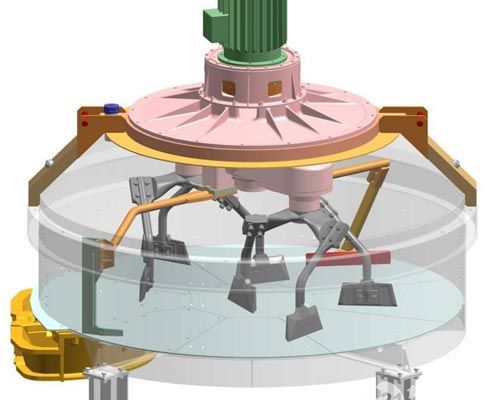

If so, the planetary mixer and the turbo planetary mixer (MP Series) to concrete batching plants are your best option. This is state-of-the-art machinery patented by Poyatos which is equipped with a turbine of mixer blades for planetary movement plus a set of turbo blades.The turbo planetary mixer combines the advantages of a planetary concrete mixer with those of a turbo (the homogeneity and speed of the mix) as well as fast discharge. This ensures a quicker production process at your Concrete Batching Plant.The tank of the mixer is fully coated on the bottom and side with special plates of steel sheet anti friction screwed that are re- placeable. The arms of the blades are mounted in an articulated and cushioned with rubber pads. They are self-adjusting, replaceable and easily accessible. They protect from dust while the pulleys are cast in NI-HARD anti-friction
| Items | JM 500 | JM 750 | JM 1000 | JM 1500 |
| Filling Volume (L) | 750 | 1125 | 1500 | 2250 |
| Feeding Capacity (Kg) | 1200 | 1800 | 2400 | 3600 |
| Compacted Concrete (L) | 500 | 750 | 1000 | 1500 |
| Mixing Power (KW) | 18.5 | 30 | 37 | 55 |
| Mixing Star/Mixing Blade (Qty) | 1 x 2 | 1 x 3 | 2 x 2 | 2 x 2 |
| Side Scraper/Discharge (Qty) | 01-Jan | |||
| Discharging Power (KW) | 3 | 3 | 3 | 3 |
| Weight (Kg) | 2400 | 3900 | 6200 | 7700 |
